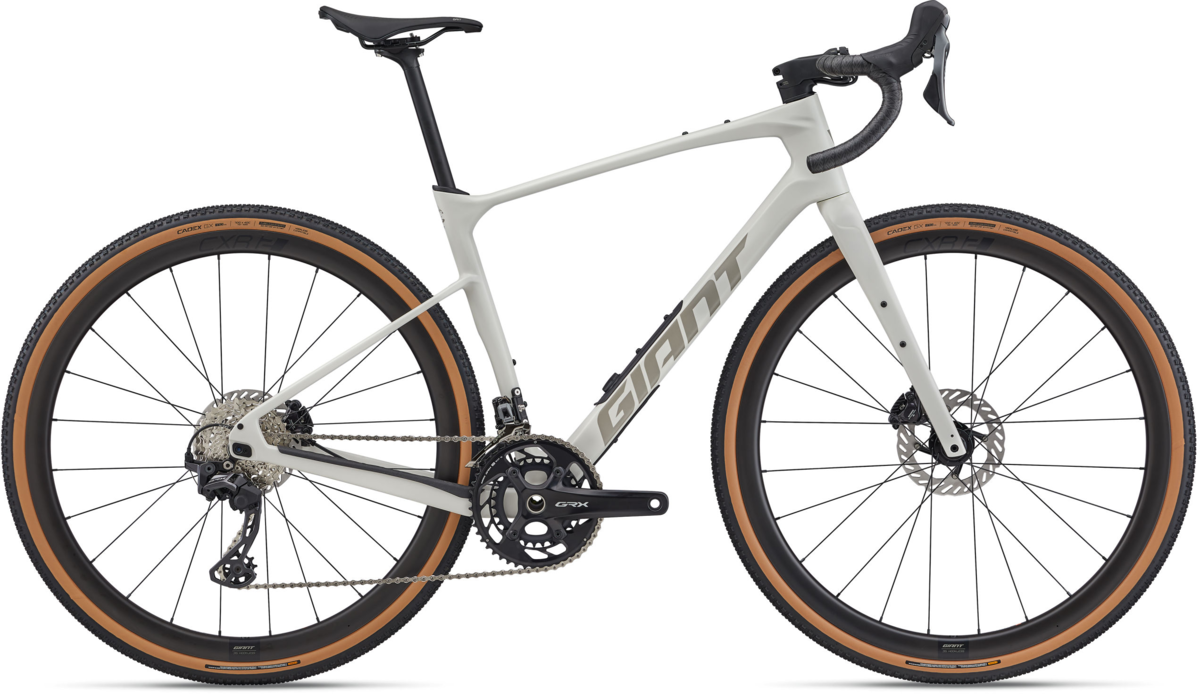

Giant Revolt Advanced 0

Giant Revolt Advanced 0
$3,950.00
Color: Snow Drift
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Order now and pick up IN-STOCK items in-store for free. *In-store pickup is free for all in-stock items, including bikes and oversized products. Specially-ordered items that are NOT in-stock, such as bikes and oversized items may incur an additional $50 freight charge which will be charged at pick-up of that item. Please keep in mind that some items may require additional processing time to transfer from off-site locations. Other items may require additional processing time for assembly. We will call or email you once your order is ready for pickup. If you need an item right away, please call us to confirm that the product is available before heading over to our store.

Details

GRAVEL CRUSHER

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

FAST AND VERSATILE
An Advanced-grade composite frame and fork combine for lightweight efficiency and smooth control. A two-position flip chip on the rear dropout lets you adjust the wheelbase: short for quicker handling, or long for added tire clearance (up to 53mm) and improved stability. You can use the included D-Fuse seatpost* for more flex and compliance, or switch to a traditional 30.9mm round seatpost or dropper post.

TUNED COMPLIANCE
Dropped seatstays with small-diameter tubing absorb road shocks and vibrations on all types of gravel. The Contact SL XR D-Fuse alloy handlebar and carbon D-Fuse seatpost help smooth out rough tracks, improving control and minimizing fatigue over long distances.

SMART INTEGRATION
Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise

Frame SizeX-SmallSmallMediumMedium/LargeLargeX-Large
A SEAT TUBE LENGTH (mm) 430 450 470 490 510 530
B SEAT TUBE ANGLE 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C TOP TUBE LENGTH (mm) 540 550 560 575 585 600
D HEAD TUBE LENGTH (mm) 125 135 150 165 180 195
E HEAD TUBE ANGLE 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F FORK RAKE (mm) 50 50 50 50 50 50
G TRAIL (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H WHEELBASE (mm) 1024 | 1034 1020 | 1030 1026 | 1036 1031 | 1041 1041 | 1051 1056 | 1066
I CHAIN STAY LENGTH (mm) 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435 425 | 435
J BOTTOM BRACKET DROP (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K STACK (mm) 556 570 586 602 616 630
L REACH (mm) 381 381 387 391 397 407
M STAND OVER HEIGHT (mm) 724 | 731 740 | 747 757 | 764 774 | 780 791 | 797 807 | 814
N HANDLEBAR WIDTH (mm) 420 420 440 440 460 460
O STEM LENGTH (mm) 50 60 70 80 80 90
P CRANK LENGTH (mm) 170 170 172.5 172.5 175 175
Q WHEEL SIZE 700c 700c 700c 700c 700c 700c
Sizes:
X-Small5’1” 5’5”
Small 5’3” 5’7”
Medium 5’7” 5’11”
Medium/Large 5’9” 6’1”
Large 5’10” 6’3”
X-Large 6’2” 6’7”

Specs

Frame Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rims Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Hubs [F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl 36t driver, CenterLock, 12mm thru-axle
Spokes Sapim Sprint
Tires CADEX GX, 700x40c, tubeless
Bottom Bracket Shimano, press fit
Crankset Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Shifters Shimano GRX RX-820, 2x12
Front Derailleur Shimano GRX RX-820
Rear Derailleur Shimano GRX RX-820
Cassette/Freewheel Shimano CS-HG710, 12-speed, 11x36
Chain KMC X12L-1
Brakes Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
Brake Levers Shimano GRX RX-820 hydraulic
Handlebars Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Tape/Grips Stratus Lite 3.0
Stem Giant Contact AeroLight, -10 degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse SL, composite, -5/+15mm offset
Pedals Sold Separately
Accessories & Extras tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position, in-frame storage bag

* Subject to change without notice.

Part Numbers

Option UPC MPN
Snow Drift / X-Small / 700c 04711291204959 1080030103
Snow Drift / Small / 700c 04711291204966 1080030104
Snow Drift / Medium / 700c 04711291204973 1080030105
Snow Drift / Medium/Large / 700c 04711291204980 1080030106
Snow Drift / Large / 700c 04711291204997 1080030107
Snow Drift / X-Large / 700c 04711291205000 1080030108
